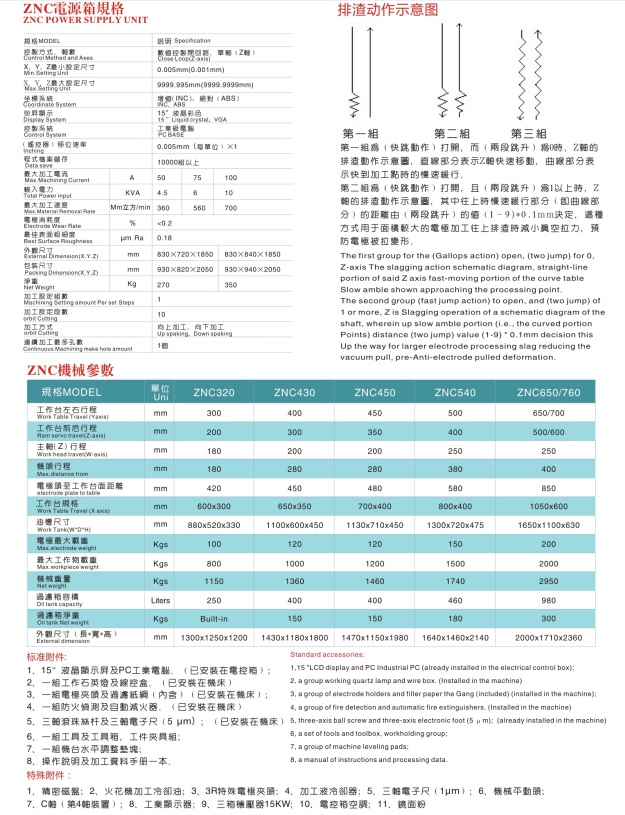

Product description

ZNC function features introduction

1. Provide more than 9999 files storage (mainly determined by the size of the internal hard disk) can store 20,000 different molds or customer number capability. With multiple groups of coordinate processing memory function.

2. With mirror processing circuit, can touch the mirror effect. Combined with shaking processing and powder mixing processing effect is better.

3. With 10 automatic finishing function. You can:

(1) Self-editing: edit processing conditions according to personal experience;

(2)AUTOZ automatic editing: The processing conditions will be automatically edited if the initial current of maximum depth is given and the finished thickness and machining area are selected;

(3) Intelligent condition editing: as long as the electrode shape, electrode and workpiece material, electrode cross-sectional area and machining completion thickness selection depth setting will automatically edit the processing conditions, the above three editing methods, can be from coarse to fine to ultrafine processing in one time.

4.X.Y.Z axis coordinates can be switched between metric and imperial systems.

5. Automatic adjustment of discharge conditions: when the discharge is not stable, the computer will modify the discharge efficiency and working time, to be stable, the conditions will automatically recover. Processing conditions can be modified and adjusted at any time.

6. Automatic anti-carbon detection function: When the carbon deposition process is not stable, the computer will automatically adjust the processing parameters, and improve the height of slag discharge, when the stability will be automatically restored.

7. The discharge can be set 2-10 times to pull up to the set arbitrary position before processing, for deep hole processing has a good slag discharge effect.

8. It has the function of eliminating secondary discharge and quick pulling up of carbon deposit or quick pulling up of discharge seeking side.

9. With the energy control function can make the machining effect more uniform. Turning off the energy controls makes processing graphite faster.

10. Newly designed power box and 15 "LCD (monitor) in line with European CE safety specifications, dustproof, waterproof, interference proof, improve the life of electronic board.

11. Industrial PC-BASE controller and DOM new memory to replace the traditional hard disk, faster file reading speed, high stability, more suitable for industrial use.

12. With upward discharge machining function, make special workpiece machining easier.

13. With two independent machining coordinate systems, the male and female modes can be machined in different coordinate systems.

14. The system will automatically load the machining conditions and coordinates of the last time after power failure and restart the machine. You can discharge the machine directly by pressing the wire control box without moving any button on the panel.

15. Two-stage speed slagging can improve the servo speed and improve the efficiency of large-area processing without being pulled out of shape.

16. Coordinates and machining data are stored separately so that the same machining conditions can be quickly imported in different workpiece machining.

17. Two kinds of high pressure crossing can be assembled according to customer requirements of partial pressure or diversion mode.

18. With XY axis automatic locking function, processing will automatically stop if someone moves during processing.
